NerdOctaxe Gamma Bitcoin miner – 9.6 TH/s, PSU & stand

The NerdOctaxe Gamma Bitcoin miner is a 9.6 TH/s, 8-chip open-source home Bitcoin miner that draws around 160 W. Built around eight BM1370 ASICs from the Antminer S21 family, it gives you serious hashpower in a compact, desk-friendly format. This package includes a black powder-coated metal stand and a 12 V 18 A PSU, so you’re ready to mine straight out of the box.

With dual Thermalright AXP90 coolers, a LILYGO T-Display S3 colour screen and AxeOS (ESP-Miner-Nerd) firmware, the NerdOctaxe Gamma is ideal for solo mining, running a small “swarm” or building a serious home mining lab.

Hashpower

NerdOctaxe Gamma uses eight BM1370 chips taken from the Antminer S21 Pro, S21+ and S21+ Hydro – some of the most efficient Bitcoin miners in existence. Combined, they deliver a total hash rate of approximately 9.6 TH/s at around 160 W, making this NerdOctaxe Gamma Bitcoin miner both powerful and relatively efficient for a home rig.

Display & controls

The built-in LILYGO T-Display S3 1.9″ LCD screen with two programmable buttons turns the miner into a live desktop dashboard. You can view:

• Current hashrate
• ASIC temperature
• Power usage & efficiency
• Pool connection status
• Bitcoin price and other stats (depending on your AxeOS config)

Software – AxeOS (ESP-Miner-Nerd)

The NerdOctaxe Gamma Bitcoin miner runs a customised build of AxeOS based on
ESP-Miner.
Configuration is done through a simple web interface – connect it to Wi-Fi, point a browser at its IP address, and you can set pools, adjust performance and monitor stats in real time.

AxeOS also supports “swarm” management, so you can run multiple Bitaxe-based miners and monitor them all from a single dashboard.

Cooling

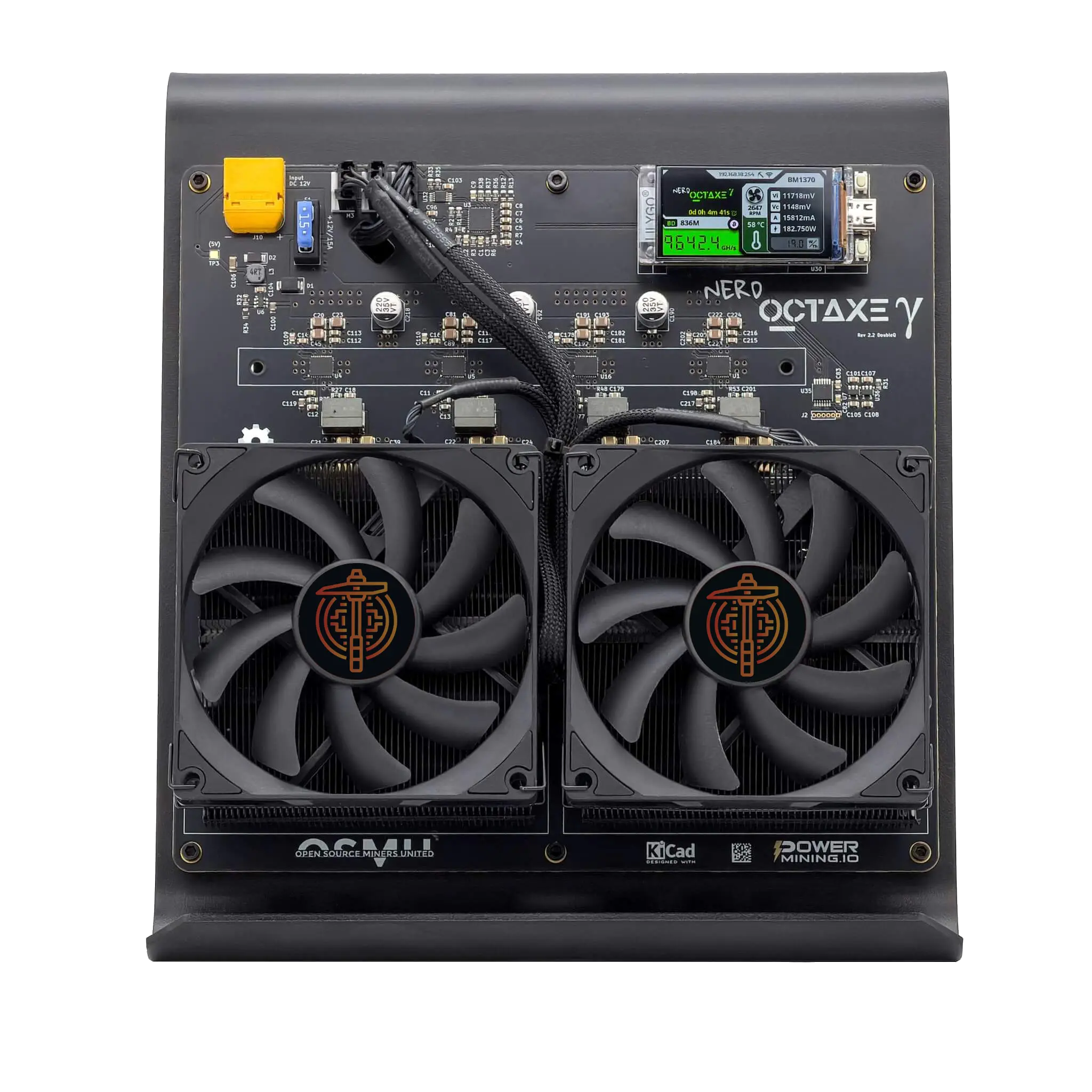

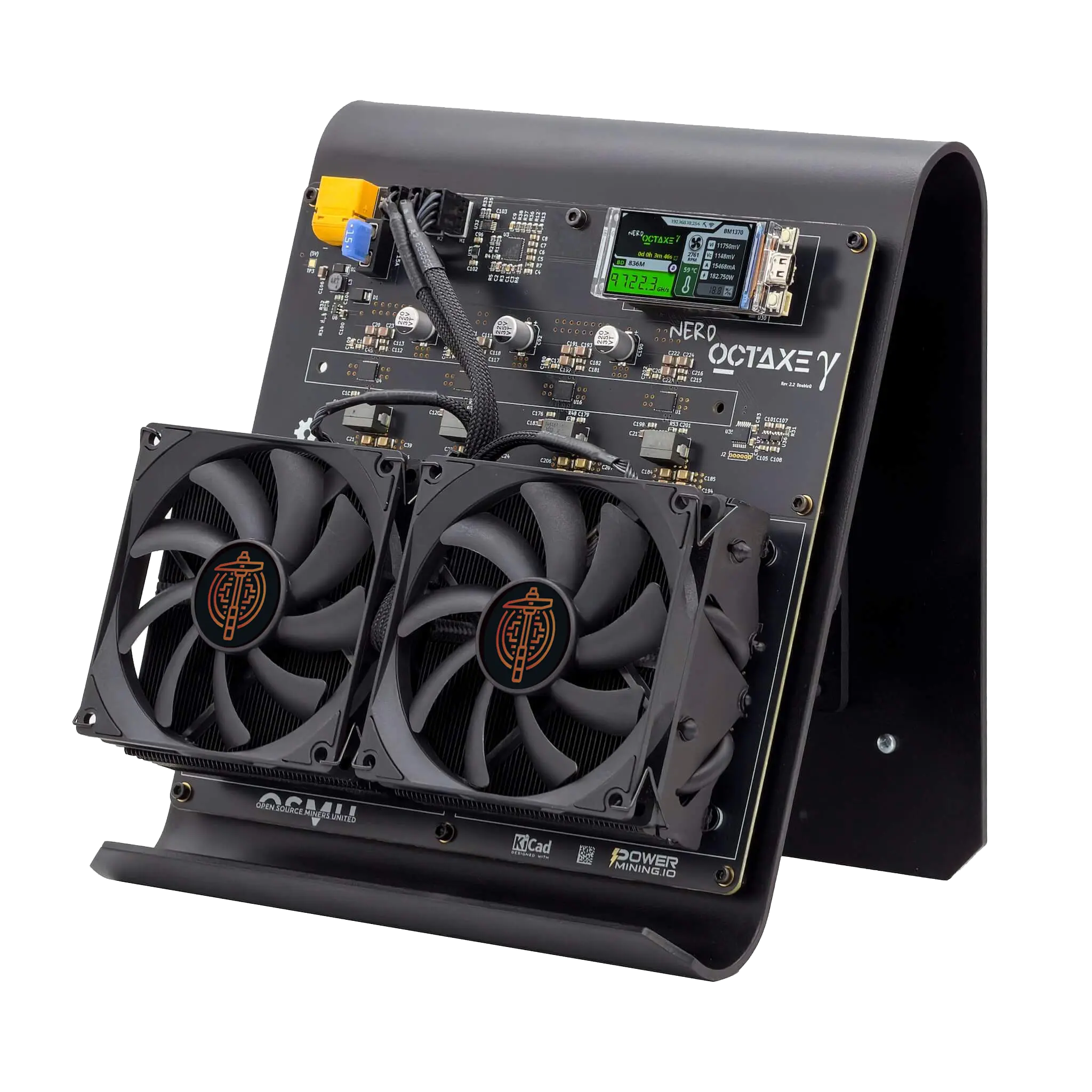

To keep all eight BM1370 chips cool, the NerdOctaxe Gamma uses dual Thermalright AXP90 low-profile CPU coolers. These provide serious cooling capacity while still fitting neatly on a desk, helping to maintain performance and stability even during longer or more aggressive mining sessions.

Technical specifications

• Model: NerdOctaxe Gamma (8× BM1370)
• Hashrate: ~9.6 TH/s (typical)
• Power consumption: ~160 W
• Chips: 8 × BM1370 (Antminer S21-class ASICs)
• Controller: ESP32 running AxeOS (ESP-Miner-Nerd)
• Connectivity: Wi-Fi, USB-C for debug / maintenance
• Display: 1.9″ LILYGO T-Display S3 colour LCD with 2 buttons
• Cooling: 2 × Thermalright AXP90 coolers
• Power input: 12 V DC via included 12 V 18 A PSU

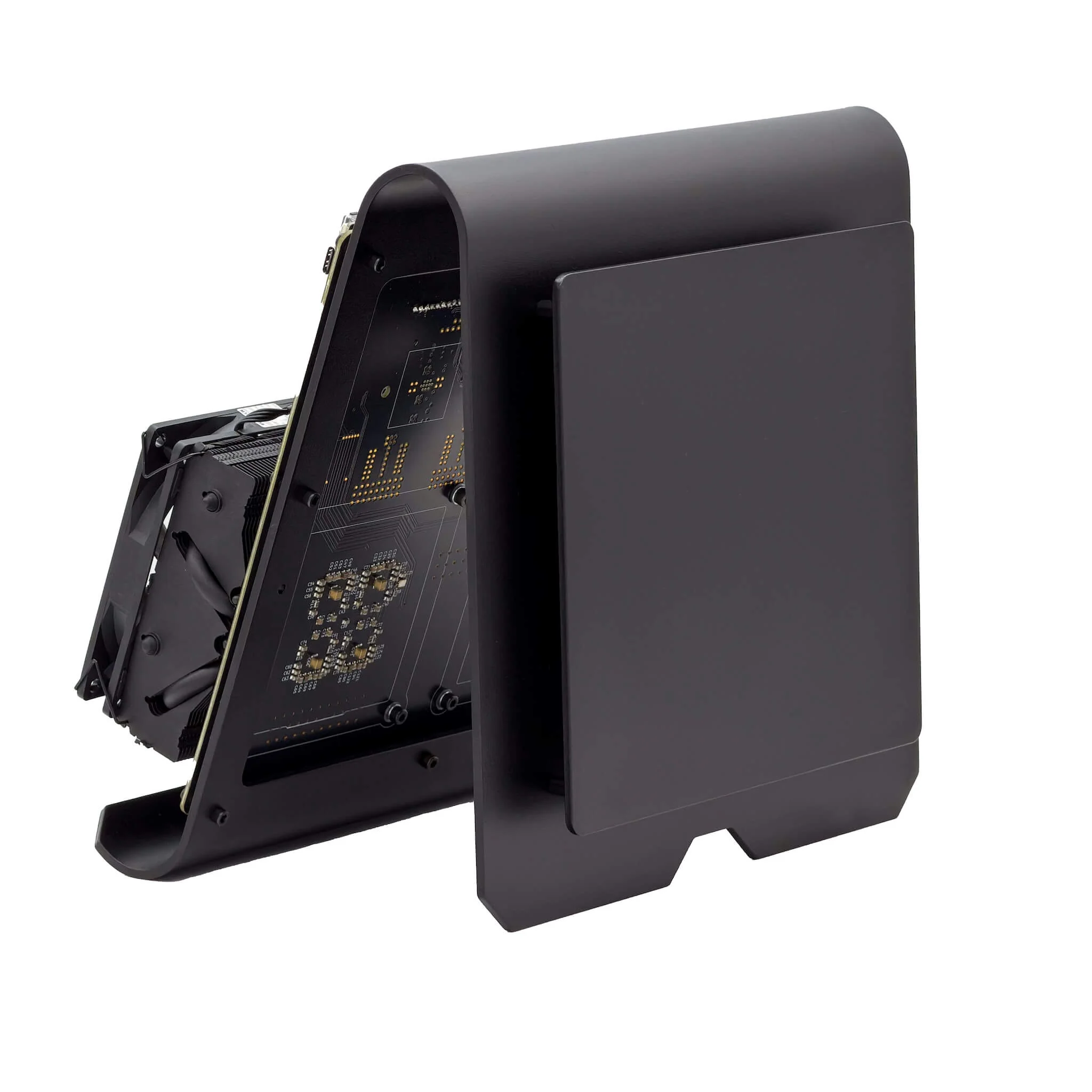

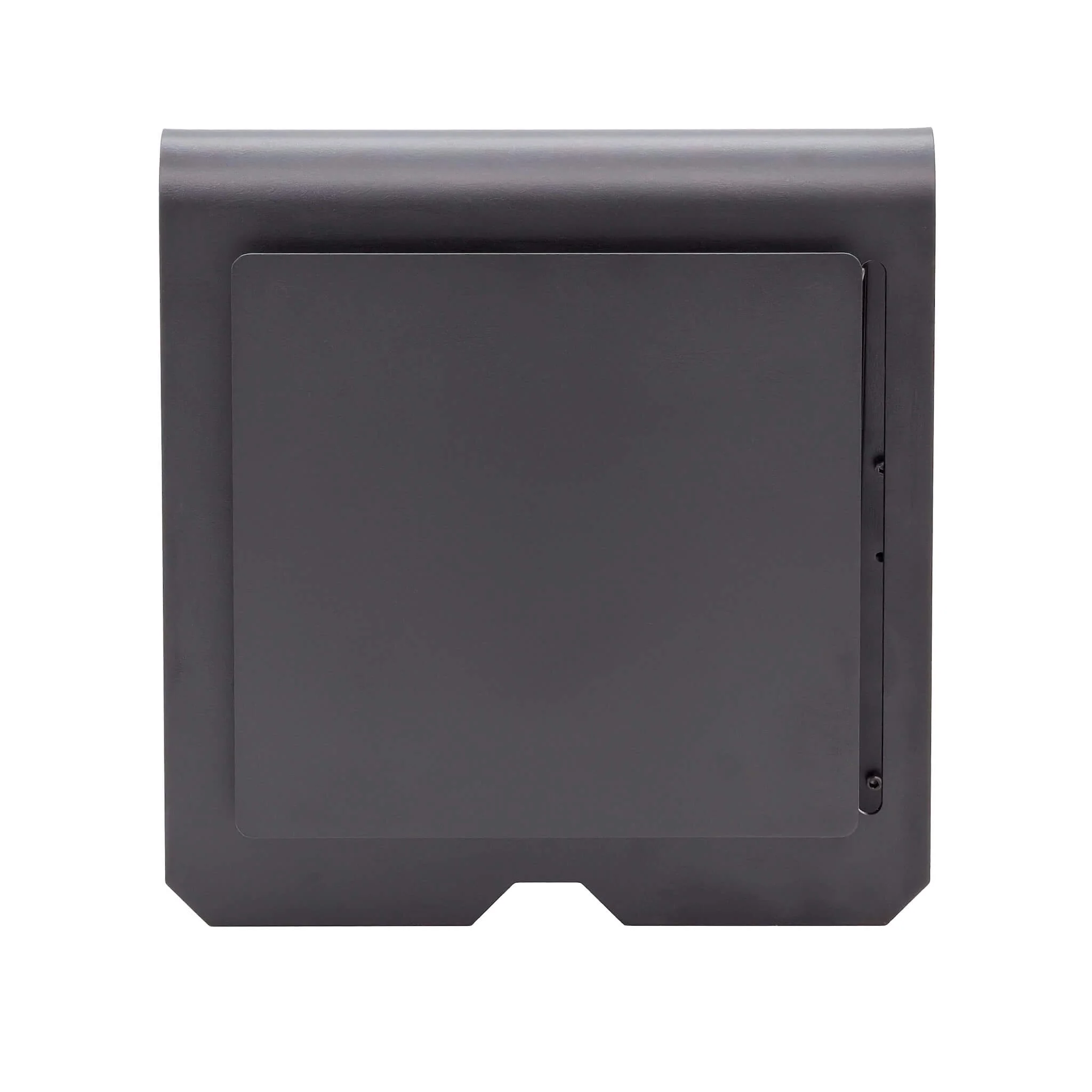

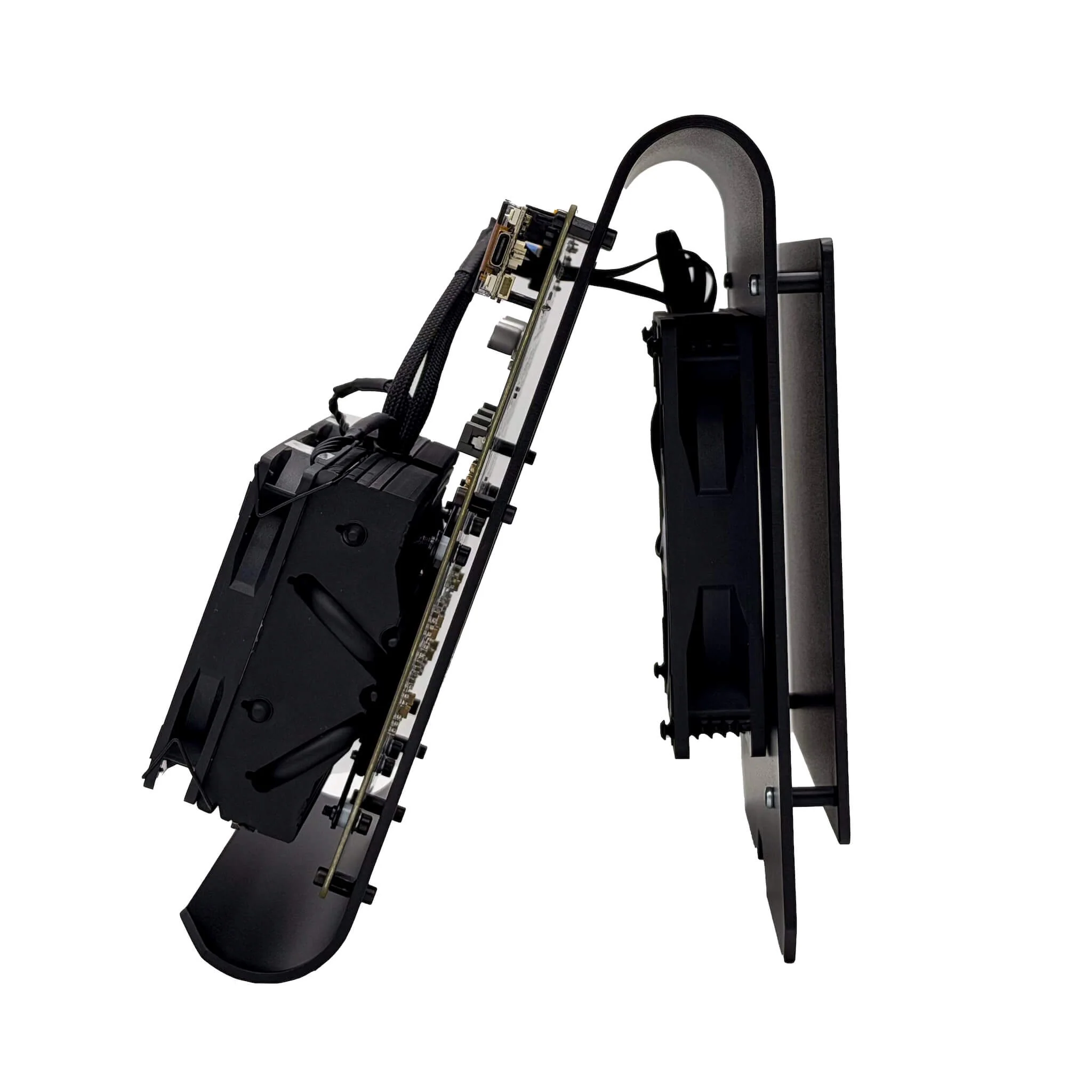

• Form factor: compact PCB on black powder-coated metal stand

What’s included with the NerdOctaxe Gamma Bitcoin miner?

• 1 × fully assembled and tested NerdOctaxe Gamma Bitcoin miner
• 1 × 12 V 18 A power supply (regional plug options)
• 1 × black powder-coated metal stand

Just add Wi-Fi and a mining pool or node, and you’re ready to go.

Who is the NerdOctaxe Gamma Bitcoin miner for?

• Bitcoin enthusiasts who want serious hashrate at home without a full-size datacentre miner.
• Tinkerers and developers who want open-source hardware and firmware to experiment with.
• Solo miners and educators building small swarms or teaching how modern ASIC mining works.
• Fans of the Bitaxe ecosystem who want an 8-chip “big brother” to smaller single-chip or quad-chip rigs.

NerdQaxe++ vs NerdOctaxe Gamma

NerdQaxe++ is the 4-chip “quad” miner in the family, while NerdOctaxe Gamma 9.6 TH/s is the 8-chip flagship. Same ecosystem, different scale. If you prefer a smaller unit, check out the

NerdQaxe++ 4.8 TH/s miner with PSU & metal stand
.

Open-source & ecosystem

NerdOctaxe Gamma sits inside the wider Bitaxe and ESP-Miner ecosystem of open-source Bitcoin miners. Firmware, schematics and community tools continue to evolve, and you can flash updates, tweak settings or join community projects over time to get even more from your hardware.

For more Bitaxe-based miners and accessories, explore the
Bitaxe collection
here at The Solo Mining Co.
