Description

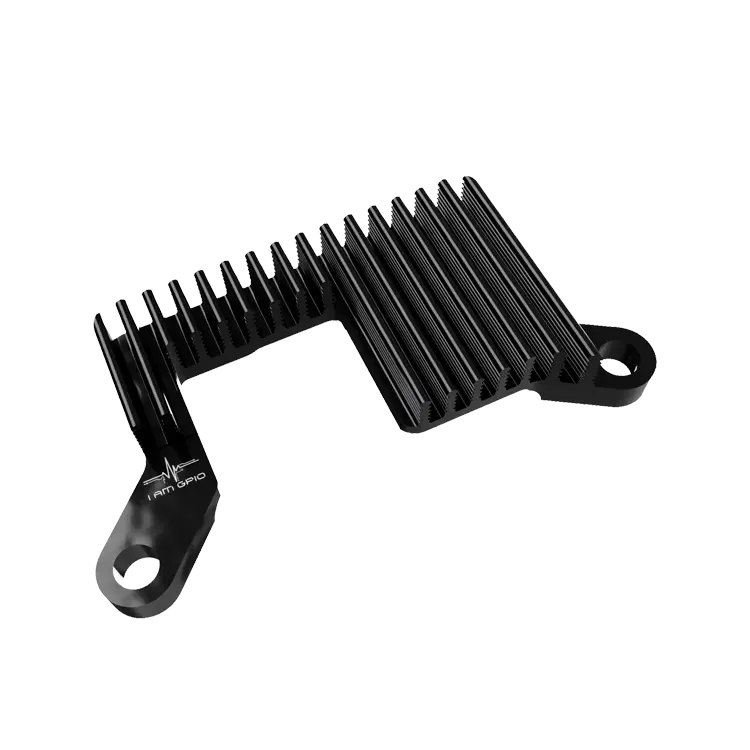

Bitaxe Gamma V-Rex heatsink – rear VREG cooler

The Bitaxe Gamma V-Rex heatsink is a tiny rear-mounted cooler with a massive job: taming the notorious VREG (voltage regulator) hotspot on the Bitaxe Gamma. CNC-machined from custom-extruded aluminium, it bolts to the back of the board and pulls heat straight out of the regulator so your Bitaxe can run harder and stay happier.

V-Rex is designed to work alongside your front heatsink – whether that’s a Bitchin’ Sink, a custom cooler or another front-mounted solution. The rear, through-hole design gives you a solid mechanical connection and reliable contact where it matters most, without relying on sketchy stick-on heatsinks that fall off as soon as things get warm.

Features

• Purpose-built VREG cooler for the Bitaxe Gamma voltage regulator
• CNC-machined aluminium from custom-extruded stock for a precise fit
• Rear-mounted, through-hole design – works with front heatsinks and fan setups
• Includes 1 mm thermal pad – sized for the VREG (peel both sides before install)
• OSMU & GekkoScience compatible – tested on both board variants
• Designed by I Am GPIO specifically for home Bitaxe builds

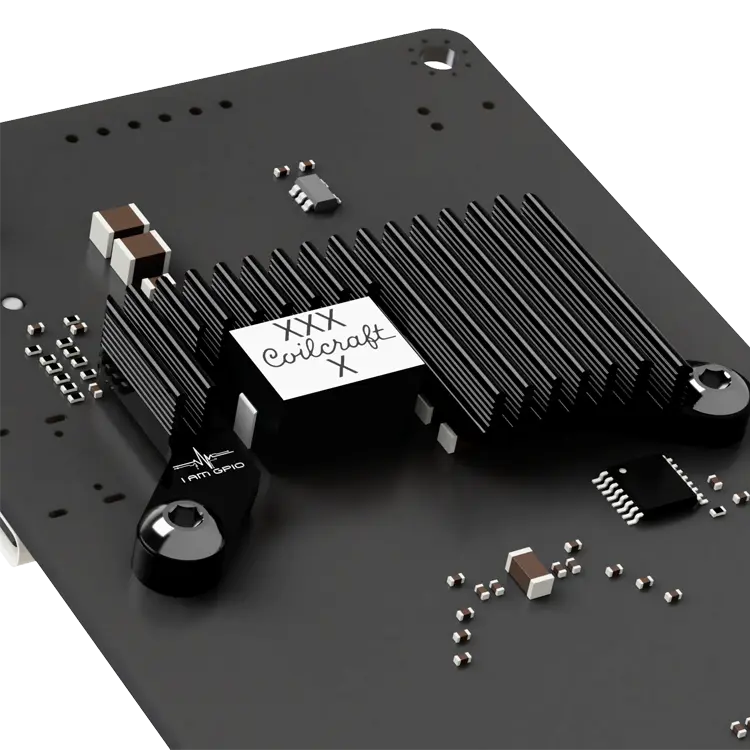

Installation of the Bitaxe Gamma V-Rex heatsink

Fitting the V-Rex is straightforward:

1. Power down and unplug your Bitaxe Gamma.
2. Apply the supplied 1 mm thermal pad to the VREG on the rear of the board (peel the plastic from both sides).
3. Align the V-Rex heatsink over the VREG and board holes.
4. Bolt it through using your chosen front heatsink / mounting hardware.
5. Power up the Bitaxe and monitor VREG temperature in AxeOS or your preferred stats view.

Once fitted, the Bitaxe Gamma V-Rex heatsink becomes part of a solid front-and-rear cooling stack, helping stabilise the regulator when overclocking or running higher ambient temperatures.

What others say

As PlebBase put it in their independent, no-BS review:

“The small miracle cooler is an absolute MUST HAVE for everyone, really! No more hassle with coolers falling off, perfect connection and workmanship.”

Want the full breakdown? Check out the PlebBase deep dive:

“Backstage: Does Size Really Matter?”

Pair it with other Bitaxe upgrades

The V-Rex really comes into its own when you’re pushing your Bitaxe Gamma harder with bigger front heatsinks, higher fan speeds or more aggressive overclocking. For a complete setup, pair the  V-Rex heatsink with other accessories from the Bitaxe accessories range – such as upgraded stands, fans and power supplies – to build a stable, tidy home mining rig that can take the heat.

Bitaxe Gamma V-Rex heatsink
